Importing landscapes | IcePanel Developer Docs

This guide shows how to import and maintain landscapes as code using the LandscapeImportData JSON schema.

This is useful for:

Generating diagrams with LLMs
Syncing landscapes via CI/CD pipelines
Maintaining diagrams in a git repository

Prerequisites:

IcePanel account
API key (created from https://app.icepanel.io/organizations/:organizationId/manage/api-keys)

Steps

Select a landscape

To import diagrams into a landscape, you will need the landscape ID, which can be found in the URL:

https://app.icepanel.io/landscapes/:landscapeId/versions/latest/overview

Or, you can get the landscape ID with a GET request to the /landscapes endpoint.

GET

/v1/organizations/:organizationId/landscapes

1 curl https://api.icepanel.io/v1/organizations/organizationId/landscapes \
2      -H "X-API-Key: <apiKey>"

Try it

This returns a list of all landscapes in your organization. Note the id of the landscape you want to import into.

Create your import file

Your landscape can be modelled in a JSON or YAML file by using the LandscapeImportData JSON schema. Each data model has a persistent id field, which is useful for upserting existing models.

Example JSON

1 {
2 "modelObjects": [
3 {
4   "id": "domain-ecommerce",
5   "name": "E-Commerce Platform",
6   "parentId": null,
7   "type": "domain"
8 },
9
10 {
11   "id": "person-customer",
12   "name": "Customer",
13   "parentId": "domain-ecommerce",
14   "type": "actor",
15   "tagIds": ["tag-external"]
16 },
17 {
18   "id": "person-admin",
19   "name": "Admin User",
20   "parentId": "domain-ecommerce",
21   "type": "actor",
22   "tagIds": ["tag-internal"]
23 },
24
25 {
26   "id": "system-storefront",
27   "name": "Storefront",
28   "parentId": "domain-ecommerce",
29   "type": "system",
30   "tagIds": ["tag-internal"]
31 },
32 {
33   "id": "system-payment",
34   "name": "Payment Gateway",
35   "parentId": "domain-ecommerce",
36   "type": "system",
37   "tagIds": ["tag-external"]
38 },
39 {
40   "id": "system-email",
41   "name": "Email Service",
42   "parentId": "domain-ecommerce",
43   "type": "system",
44   "tagIds": ["tag-external"]
45 },
46
47 {
48   "id": "container-web",
49   "name": "Web App",
50   "parentId": "system-storefront",
51   "type": "app",
52   "tagIds": ["tag-internal"]
53 },
54 {
55   "id": "container-api",
56   "name": "API Server",
57   "parentId": "system-storefront",
58   "type": "app",
59   "tagIds": ["tag-internal"]
60 },
61 {
62   "id": "container-db",
63   "name": "Product Database",
64   "parentId": "system-storefront",
65   "type": "database",
66   "tagIds": ["tag-internal"]
67 },
68 {
69   "id": "container-cache",
70   "name": "Cache",
71   "parentId": "system-storefront",
72   "type": "database",
73   "tagIds": ["tag-internal"]
74 },
75
76 {
77   "id": "component-product-service",
78   "name": "Product Service",
79   "parentId": "container-api",
80   "type": "component",
81   "tagIds": ["tag-internal"]
82 },
83 {
84   "id": "component-order-service",
85   "name": "Order Service",
86   "parentId": "container-api",
87   "type": "component",
88   "tagIds": ["tag-internal"]
89 },
90 {
91   "id": "component-auth-service",
92   "name": "Auth Service",
93   "parentId": "container-api",
94   "type": "component",
95   "tagIds": ["tag-internal"]
96 },
97 {
98   "id": "component-notification-service",
99   "name": "Notification Service",
100   "parentId": "container-api",
101   "type": "component",
102   "tagIds": ["tag-internal"]
103 }
104 ],
105
106 "modelConnections": [
107 {
108   "id": "conn-customer-web",
109   "name": "Browses store via HTTPS",
110   "direction": "outgoing",
111   "originId": "person-customer",
112   "targetId": "container-web"
113 },
114 {
115   "id": "conn-admin-web",
116   "name": "Manages catalog via HTTPS",
117   "direction": "outgoing",
118   "originId": "person-admin",
119   "targetId": "container-web"
120 },
121 {
122   "id": "conn-web-api",
123   "name": "REST API calls",
124   "direction": "outgoing",
125   "originId": "container-web",
126   "targetId": "container-api"
127 },
128 {
129   "id": "conn-api-db",
130   "name": "Reads/writes",
131   "direction": "outgoing",
132   "originId": "container-api",
133   "targetId": "container-db"
134 },
135 {
136   "id": "conn-api-cache",
137   "name": "Caches product data",
138   "direction": "outgoing",
139   "originId": "container-api",
140   "targetId": "container-cache"
141 },
142 {
143   "id": "conn-order-payment",
144   "name": "Processes payment",
145   "direction": "outgoing",
146   "originId": "component-order-service",
147   "targetId": "system-payment"
148 },
149 {
150   "id": "conn-notification-email",
151   "name": "Sends order confirmations",
152   "direction": "outgoing",
153   "originId": "component-notification-service",
154   "targetId": "system-email"
155 },
156 {
157   "id": "conn-product-db",
158   "name": "Queries product catalog",
159   "direction": "outgoing",
160   "originId": "component-product-service",
161   "targetId": "container-db"
162 },
163 {
164   "id": "conn-auth-db",
165   "name": "Reads user records",
166   "direction": "outgoing",
167   "originId": "component-auth-service",
168   "targetId": "container-db"
169 },
170 {
171   "id": "conn-order-notification",
172   "name": "Triggers notifications",
173   "direction": "outgoing",
174   "originId": "component-order-service",
175   "targetId": "component-notification-service"
176 }
177 ],
178
179 "tagGroups": [
180 {
181   "id": "tag-group-ownership",
182   "name": "Ownership",
183   "icon": "tag"
184 }
185 ],
186
187 "tags": [
188 {
189   "id": "tag-internal",
190   "name": "Internal",
191   "color": "blue",
192   "groupId": "tag-group-ownership"
193 },
194 {
195   "id": "tag-external",
196   "name": "External",
197   "color": "orange",
198   "groupId": "tag-group-ownership"
199 }
200 ]
201 }

Example YAML

1 # yaml-language-server: $schema=https://api.icepanel.io/v1/schemas/LandscapeImportData
2
3 tagGroups:
4 - id: tag-group-ownership
5 name: Ownership
6 icon: tag
7
8 tags:
9 - id: tag-internal
10 name: Internal
11 color: blue
12 groupId: tag-group-ownership
13 - id: tag-external
14 name: External
15 color: orange
16 groupId: tag-group-ownership
17
18 modelObjects:
19 - id: domain-ecommerce
20 name: E-Commerce Platform
21 type: domain
22
23 - id: person-customer
24 name: Customer
25 type: actor
26 parentId: domain-ecommerce
27 tagIds:
28   - tag-external
29
30 - id: person-admin
31 name: Admin User
32 type: actor
33 parentId: domain-ecommerce
34 tagIds:
35   - tag-internal
36
37 - id: system-storefront
38 name: Storefront
39 type: system
40 parentId: domain-ecommerce
41 tagIds:
42   - tag-internal
43
44 - id: system-payment
45 name: Payment Gateway
46 type: system
47 parentId: domain-ecommerce
48 tagIds:
49   - tag-external
50
51 - id: system-email
52 name: Email Service
53 type: system
54 parentId: domain-ecommerce
55 tagIds:
56   - tag-external
57
58 - id: container-web
59 name: Web App
60 type: app
61 parentId: system-storefront
62 tagIds:
63   - tag-internal
64
65 - id: container-api
66 name: API Server
67 type: app
68 parentId: system-storefront
69 tagIds:
70   - tag-internal
71
72 - id: container-db
73 name: Product Database
74 type: database
75 parentId: system-storefront
76 tagIds:
77   - tag-internal
78
79 - id: container-cache
80 name: Cache
81 type: database
82 parentId: system-storefront
83 tagIds:
84   - tag-internal
85
86 - id: component-product-service
87 name: Product Service
88 type: component
89 parentId: container-api
90 tagIds:
91   - tag-internal
92
93 - id: component-order-service
94 name: Order Service
95 type: component
96 parentId: container-api
97 tagIds:
98   - tag-internal
99
100 - id: component-auth-service
101 name: Auth Service
102 type: component
103 parentId: container-api
104 tagIds:
105   - tag-internal
106
107 - id: component-notification-service
108 name: Notification Service
109 type: component
110 parentId: container-api
111 tagIds:
112   - tag-internal
113
114 modelConnections:
115 - id: conn-customer-web
116 name: Browses store via HTTPS
117 direction: outgoing
118 originId: person-customer
119 targetId: container-web
120
121 - id: conn-admin-web
122 name: Manages catalog via HTTPS
123 direction: outgoing
124 originId: person-admin
125 targetId: container-web
126
127 - id: conn-web-api
128 name: REST API calls
129 direction: outgoing
130 originId: container-web
131 targetId: container-api
132
133 - id: conn-api-db
134 name: Reads/writes
135 direction: outgoing
136 originId: container-api
137 targetId: container-db
138
139 - id: conn-api-cache
140 name: Caches product data
141 direction: outgoing
142 originId: container-api
143 targetId: container-cache
144
145 - id: conn-order-payment
146 name: Processes payment
147 direction: outgoing
148 originId: component-order-service
149 targetId: system-payment
150
151 - id: conn-notification-email
152 name: Sends order confirmations
153 direction: outgoing
154 originId: component-notification-service
155 targetId: system-email
156
157 - id: conn-product-db
158 name: Queries product catalog
159 direction: outgoing
160 originId: component-product-service
161 targetId: container-db
162
163 - id: conn-auth-db
164 name: Reads user records
165 direction: outgoing
166 originId: component-auth-service
167 targetId: container-db
168
169 - id: conn-order-notification
170 name: Triggers notifications
171 direction: outgoing
172 originId: component-order-service
173 targetId: component-notification-service

Import your landscape

You can import the file through the UI or the API.

Each id in your import file maps to a resource in IcePanel. It’s either created if the resource does not exist or updated otherwise.

UI

API

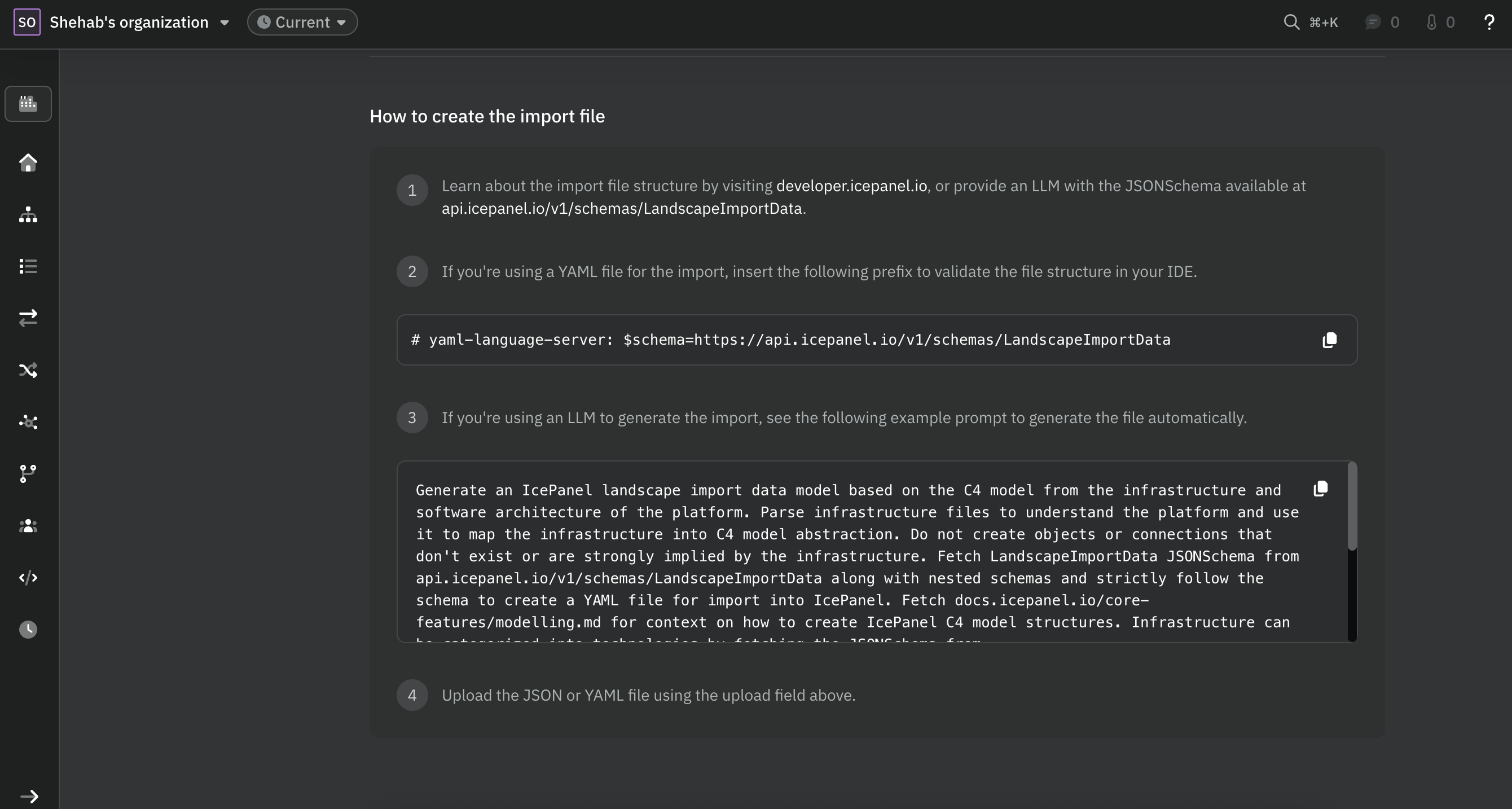

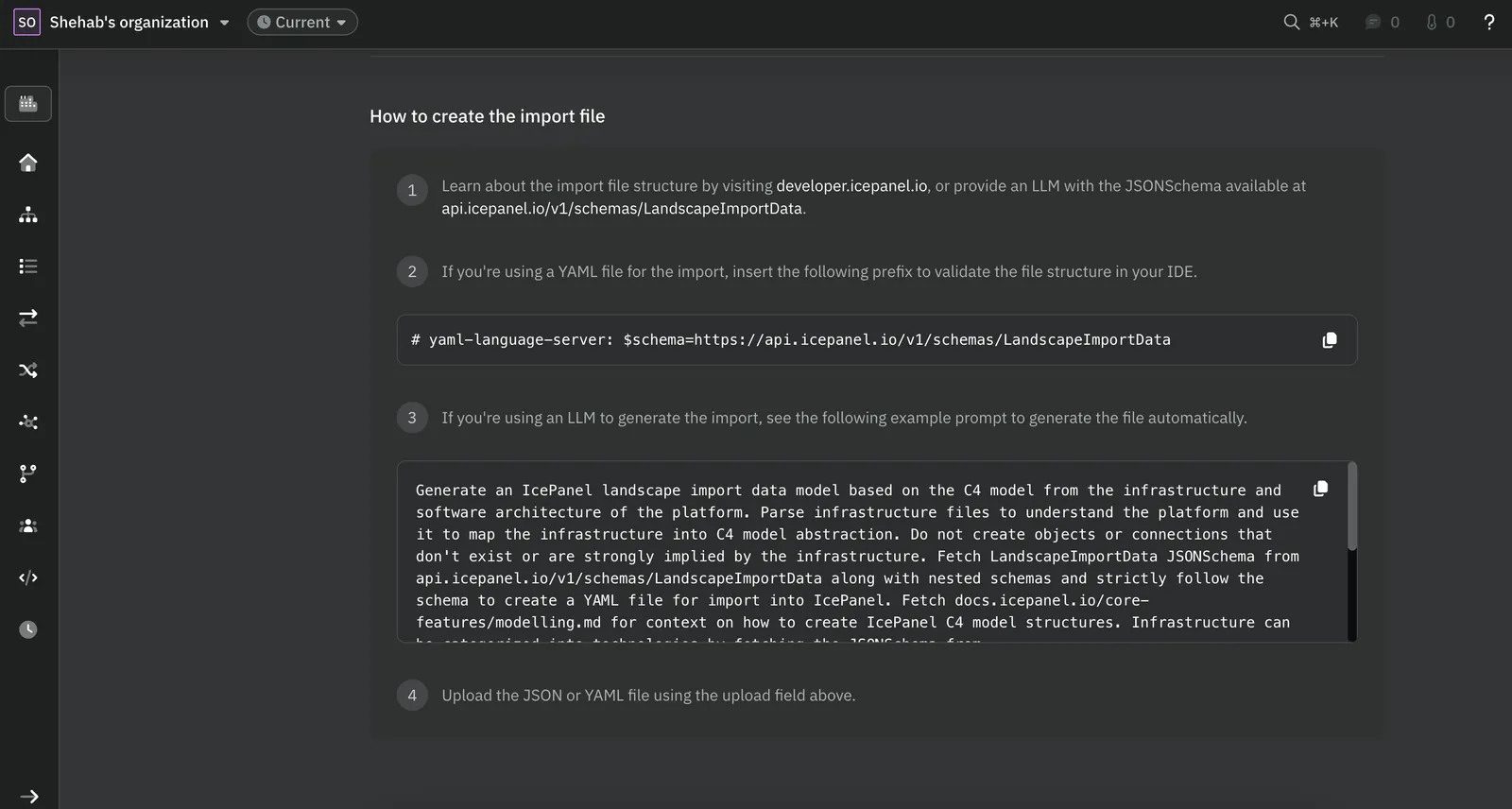

From the landscape page, click Import model > File Upload and upload your file.

Import landscape file

Set up CI/CD

To keep your landscape in sync automatically, call the import endpoint in a CI/CD job on every push to your main branch.

GitHub Actions

GitLab CI/CD

Add two repository secrets in GitHub (Settings > Secrets and variables > Actions):

ICEPANEL_LANDSCAPE_ID
ICEPANEL_API_KEY

Create a workflow file at .github/workflows/icepanel-sync.yml:

your-project

.github

workflows

icepanel-sync.yml

icepanel-landscape-import.yaml

README.md

.github/workflows/icepanel-sync.yml

1 name: Synchronise IcePanel landscape
2
3 on:
4   push:
5     branches:
6       - main
7       - master
8
9 jobs:
10   synchronise-landscape:
11     runs-on: ubuntu-latest
12     steps:
13       - uses: actions/checkout@v4
14
15       - name: Import landscape
16         run: |
17           curl -sf -X POST "https://api.icepanel.io/v1/landscapes/${{ vars.ICEPANEL_LANDSCAPE_ID }}/versions/latest/import" \
18             -H "X-API-Key: ${{ secrets.ICEPANEL_API_KEY }}" \
19             -H "Content-Type: application/yaml" \
20             --data-binary @icepanel-landscape-import.yaml

This triggers the synchronise-landscape job on every push to main/master.

Generating diagrams with LLMs

LLMs can generate a valid import file from a description of your architecture. The LandscapeImportData schema is publicly accessible, so you can point the LLM directly at it to validate the output.

See an example prompt that generates an import file for IcePanel.

Prompt

Generate an IcePanel landscape import data model based on the C4 model from the infrastructure and software architecture of the platform.
Parse infrastructure files to understand the platform and use it to map the infrastructure into C4 model abstraction.
Do not create objects or connections that don't exist or are strongly implied by the infrastructure.
Fetch LandscapeImportData JSONSchema from api.icepanel.io/v1/schemas/LandscapeImportData along with nested schemas and strictly follow the schema to create a YAML file for import into IcePanel.
Fetch docs.icepanel.io/core-features/modelling.md for context on how to create IcePanel C4 model structures.
Infrastructure can be categorized into technologies by fetching the JSONSchema from api.icepanel.io/v1/schemas/CatalogTechnologyType.
Perform an exhaustive search for technologies using http requests to api.icepanel.io/v1/catalog/technologies?filter[name]=NodeJS and add the id to the technologyIds array.
If a technology cannot be found try reducing the search term to be more specific to find a match.
If a primary technology exists then assign the visual icon to icon.technologyId.
Write the resulting import data to a YAML file to the file named icepanel-landscape-import.yaml in the current directory.
Prefix the YAML file with # yaml-language-server: $schema=https://api.icepanel.io/v1/schemas/LandscapeImportData.

Example output:

icepanel-landscape-import.yaml

Prune option

By default, data models that exist in IcePanel but are missing from your import file are left untouched. To have IcePanel delete models not present in the import file, add the prune=true query parameter.

Note that prune=true is a destructive operation. Any model objects, connections, tags, or tag groups in IcePanel that are not in your import file will be permanently deleted. Make sure your import file is the complete source of truth before using this option.

$ curl -sf -X POST "https://api.icepanel.io/v1/landscapes/$ICEPANEL_LANDSCAPE_ID/versions/latest/import?prune=true" \
>   -H "X-API-Key: $ICEPANEL_API_KEY" \
>   -H "Content-Type: application/yaml" \
>   --data-binary @icepanel-landscape-import.yaml

Namespace option

A namespace is a label that groups models by their import source. You can add a namespace to your import file to separate models by import source. When used with prune=true, only models in the same namespace are deleted. Models from other namespaces are left untouched.

This is useful for large organizations running multiple CI/CD pipelines from different repositories against the same landscape, with each pipeline managing its own models independently.

You can set the namespace in your YAML file:

1 # yaml-language-server: $schema=https://api.icepanel.io/v1/schemas/LandscapeImportData
2
3 namespace: my-repo
4
5 modelObjects:
6   - id: system-storefront
7     name: Storefront
8     type: system

Or pass it directly in the request body when using JSON:

$ curl -sf -X POST "https://api.icepanel.io/v1/landscapes/$ICEPANEL_LANDSCAPE_ID/versions/latest/import" \
>   -H "X-API-Key: $ICEPANEL_API_KEY" \
>   -H "Content-Type: application/json" \
>   -d '{
>     "namespace": "my-repo",
>     "modelObjects": [...]
>   }'
